Product Description

The RF series shutterless infrared camera core does not require shutter correction during operation. It can adapt to 1500g@0.4ms strong impact environment and solve problems of jamming or noise encountered by observers.

In order to meet the personalized needs of integrators, RF series infrared camera core is equipped with multiple functions such as a reticle, external OLED, keypads and provides various video interfaces and lenses for easy integration.

The outer diameter does not exceed φ36 and bare weight is no more than 28.6g. Such a powerful performance infrared camera core truly provides first-class observation experience under limited space and load conditions.

Main Features

Shutterless Solution

No need shutter correction during use

Mute Operation

Mute operation for good concealment

Strong Impact Resistance

Impact resistance up to 1500g, duration 0.4ms

Tiny and Light

Max outer diameter≤φ36, weight ≤28.6g (bare module)

Powerful Features

Support reticle, picture in picture, keypads etc.

Multiple Interfaces

Support various video interfaces

Lens Options

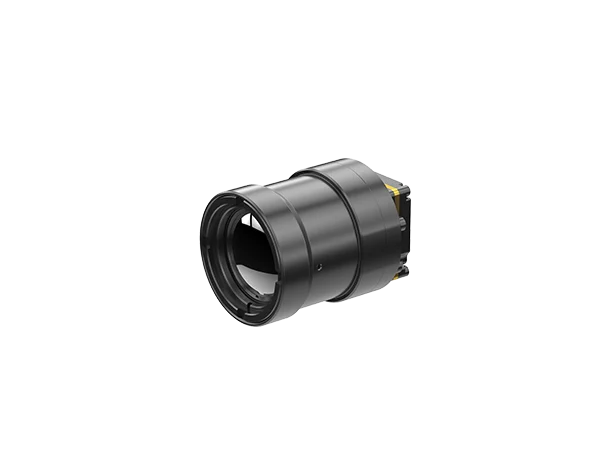

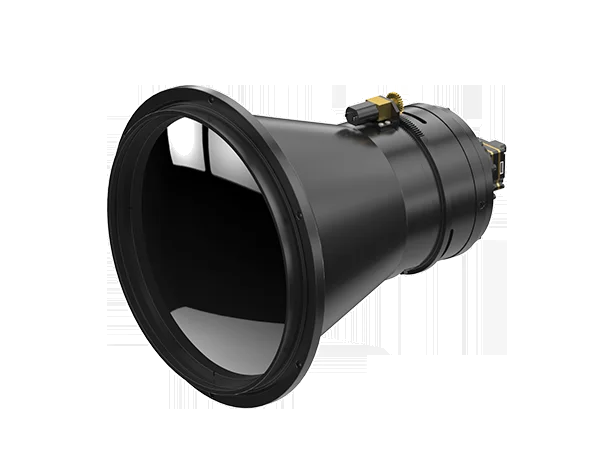

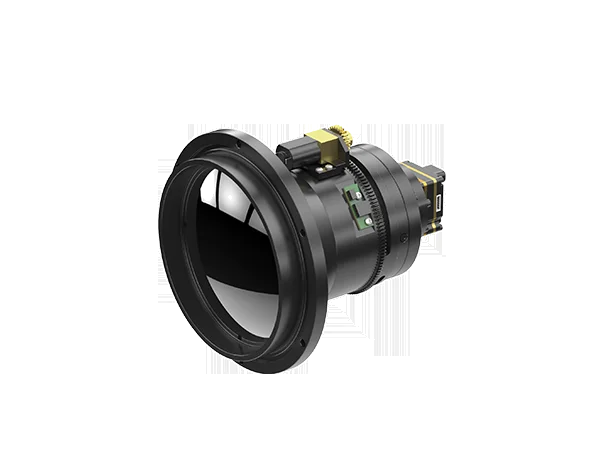

Various lenses are available for different applications: manual focus/motorized lens/continuous zoom

Specifications

Parameter	Value
Model	RF412
Resolution	384×288/12μm
Spectral Response	8~14μm
Typical NETD	≤30mK@f1.0/25℃
Frame Rate	25Hz/30Hz/50Hz
Digital Video Format	RAW/YUV
Image Algorithm	NUC/3DNR/DNS/DRC/EE
Pseudo Color	10 Types
Digital Zoom	1x/2x/4x/8x
Working Voltage	DC 2.7-5.3V
Power Consumption	0.5W@23±3℃
Operating Temperature	-40℃~+70℃
Shock	1500g@0.4ms
Size (Bare Module)	≤φ36mm
Weight (Bare Module)	≤28.6g
