IGS612

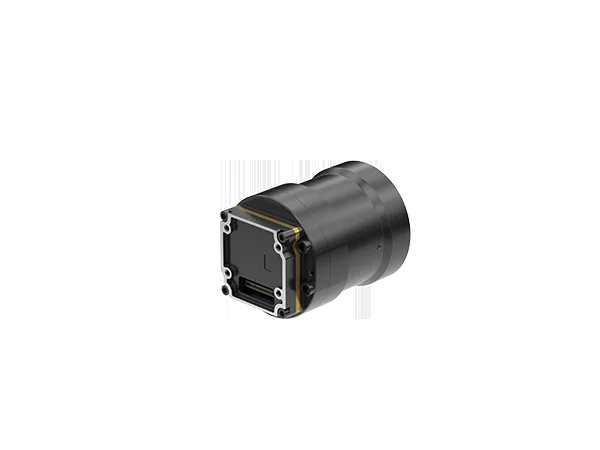

Shutterless Uncooled Infrared Camera Core 640×512/12μm
1 / 5
Product Description
The RF series shutterless infrared camera core does not require shutter correction during operation. It can adapt to 1500g@0.4ms strong impact environment and solve problems of jamming or noise encountered by observers.
In order to meet the personalized needs of integrators, RF series infrared camera core is equipped with multiple functions such as a reticle, external OLED, keypads and provides various video interfaces and lenses for easy integration.
The outer diameter does not exceed φ36 and bare weight is no more than 28.6g. Such a powerful performance infrared camera core truly provides first-class observation experience under limited space and load conditions.
Main Features
Shutterless Solution
No need shutter correction during use
Mute Operation
Mute operation for good concealment
Strong Impact Resistance
Impact resistance up to 1500g, duration 0.4ms
Tiny and Light
Max outer diameter≤φ36, weight ≤28.6g (bare module)
Powerful Features
Support reticle, picture in picture, keypads etc.
Multiple Interfaces
Support various video interfaces
OLED Support
Support to drive various Micro OLEDs
Lens Options

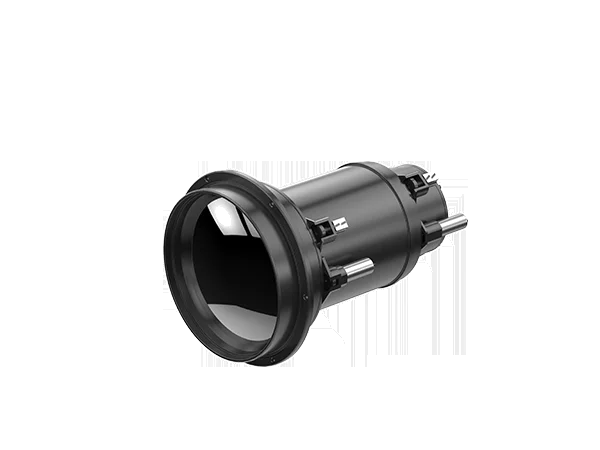

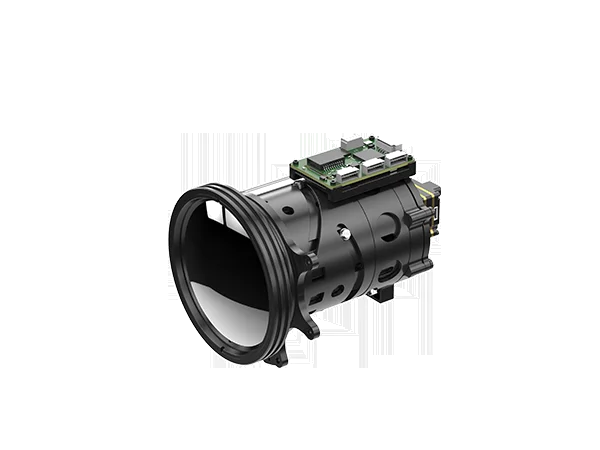

Various lenses are available for different applications: manual focus/motorized lens/continuous zoom
Specifications
| Parameter | Value |
|---|---|
| Model | RF612 |
| Resolution | 640×512/12μm |
| Spectral Response | 8~14μm |
| Typical NETD | ≤30mK@f1.0/25℃ |
| Frame Rate | 25Hz/30Hz/50Hz |
| Digital Video Format | RAW/YUV |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Pseudo Color | 10 Types |
| Digital Zoom | 1x/2x/4x/8x |
| Standard External Interface | 50pin |
| Digital Video Interface | DVP8/DVP16/USB2.0/LVDS/BT.656 |
| Working Voltage | DC 2.7-5.3V |
| Power Consumption | 0.5W@23±3℃ |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Shock | 1500g@0.4ms |
| Size (Bare Module) | ≤φ36mm |
| Weight (Bare Module) | ≤28.6g |
| Optional Lens | Manual Focus: 25mm/35mm/50mm / Fixed Focus Athermal: 19mm/25mm/35mm/50mm/70mm/100mm / Motorized Lens: 75mm/100mm/150mm / Continuous Zoom: 28~90mm/30~180mm |
