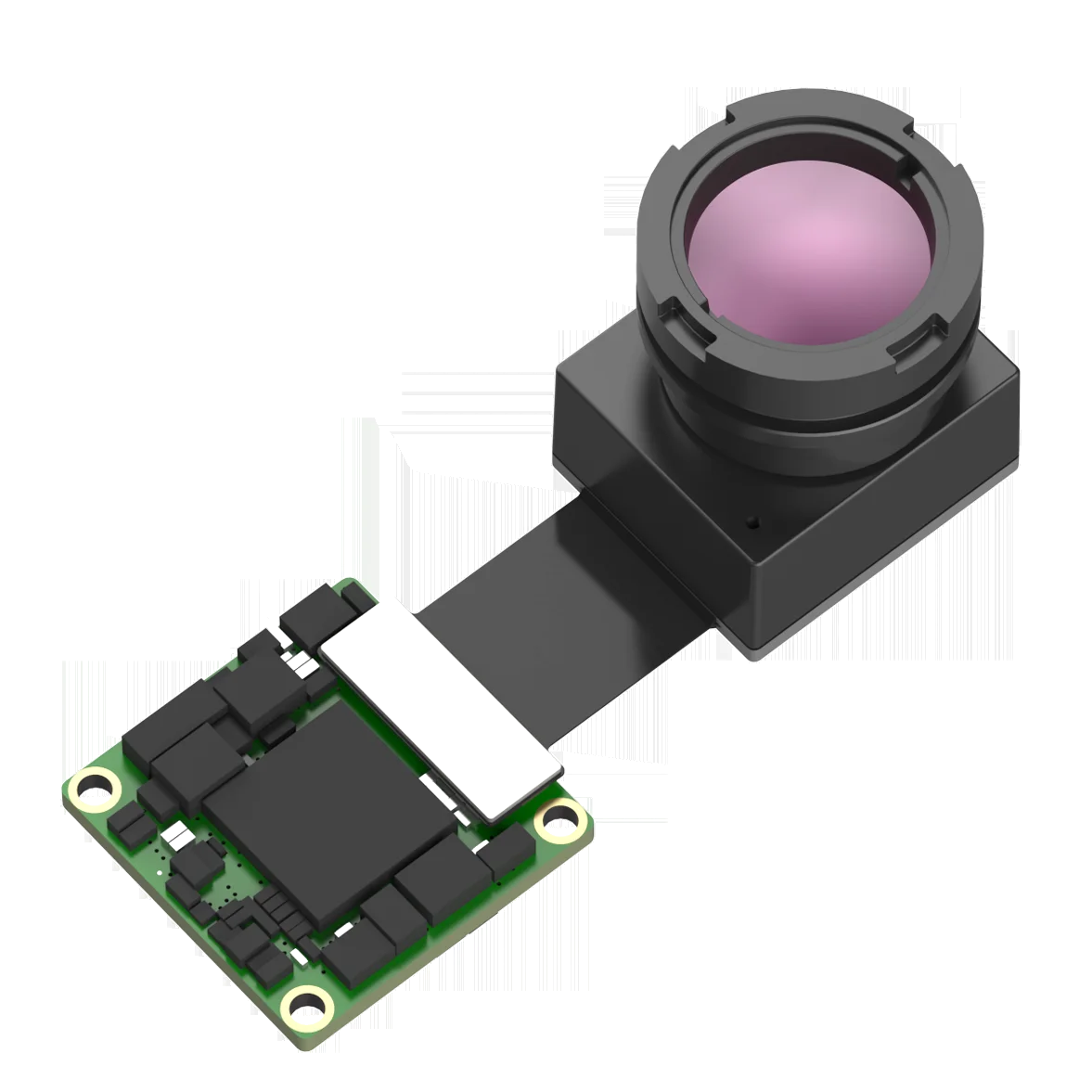

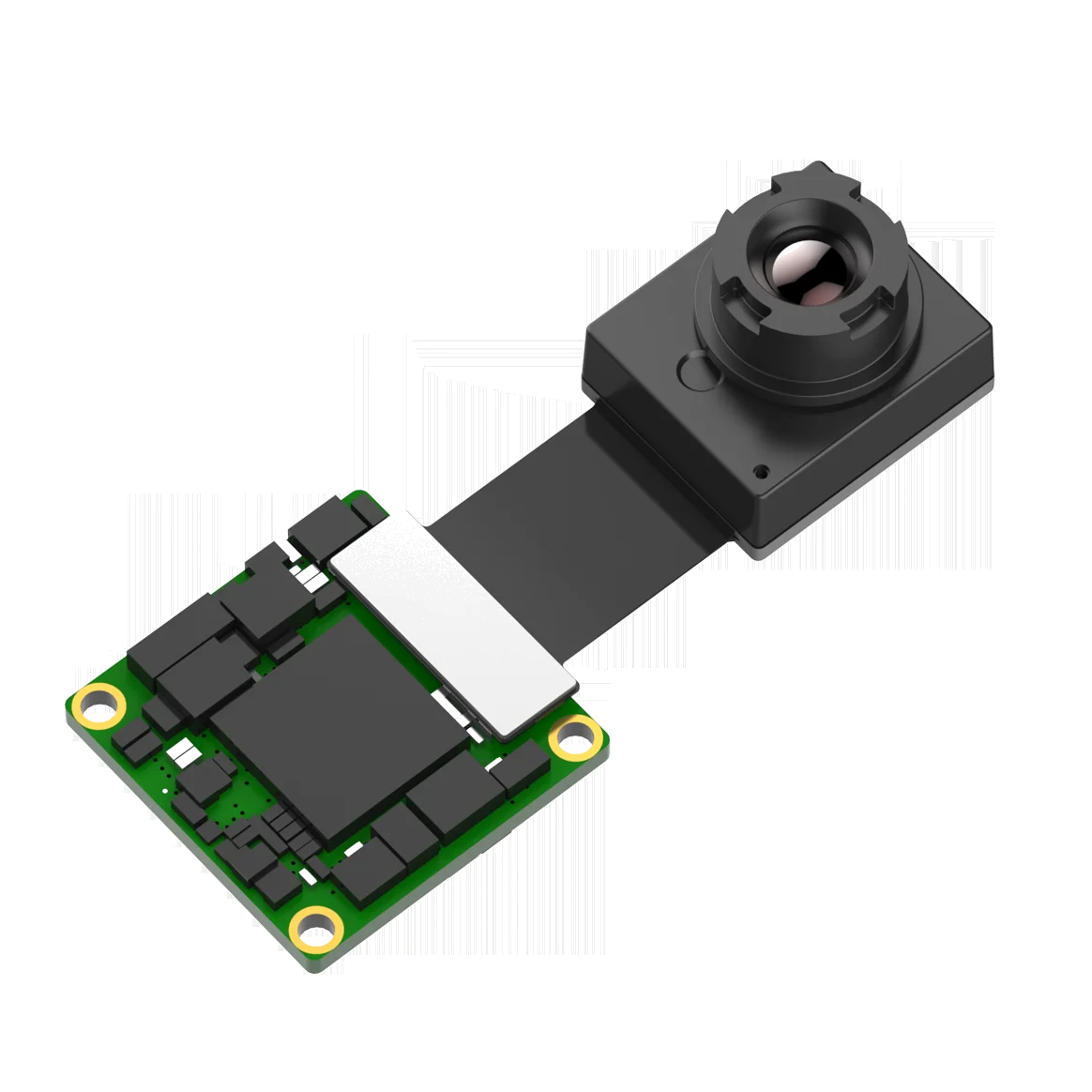

MINI212
MN Series Miniature 256×192/12μm Thermal Module
1 / 3
Product Description
MN212 uncooled miniature thermal module is developed based on the TM256 thermal module by ChengJing. The product has small size, low power consumption, low cost, and optional multi-view configuration. Its temperature matrices and images allow integrators to integrate and develop their own products more efficiently and simply.
The MN212 is ideal for handheld thermal cameras, smart phones and accessories, wearable and AR glasses, and AI vision application devices.
Main Features
Meeting Low-Cost Requirements
Utilizing self-developed 256x192/12μm wafer-level-package infrared detector
Clear Imaging
Next-generation image algorithms for clearer imaging: NUC/3DNR/DNS/DRC/EE/SFFC etc
Temperature Measurement
Temperature measurement range: -20℃~150℃, 100℃~550℃
Ultra-compact Structure
Size 17mmx17mm (With PCBA) for more compact integration
Lightweight & IP67
Lightweight design with weight as low as 3.8g, achieving up to IP67 with the complete system
Rapid System Integration
Easy system integration for various applications
Specifications
| Parameter | Value |
|---|---|
| Model | MN212 |
| Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Range | 8~14μm |
| Typical NETD | ≤50mK |
| Frame Rate | 25Hz |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE/SFFC |
| Temperature Measurement Range | -20℃~150℃, 100℃~550℃ |
| Size (mm) | 17×17 (With PCBA) |
| Weight | 3.8g |
| Protection Level | Up to IP67 with complete system |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -40℃~+85℃ |
