Product Description

PG417/PG417R is one of the PG series uncooled thermal IR camera modules developed by ChengJing. It consists of 384x288/17μm uncooled infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.

PG417/PG417R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.

We are committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.

Main Features

High Sensitivity

Typical NETD<30mk, High Sensitivity

Stable Performance

Stable Performance for reliable operation

Easy Integration

Easy Integration & Plug-in design

Clear Image Quality

Clear Image Quality & Details

Customizable Range

Customizable Temperature Range

Environmental Adaptability

Strong Environmental Adaptability

Specifications

Parameter	Value
Model	PG417/PG417R
Resolution	384×288
Pixel Size	17μm
Spectral Range	8~14μm
Typical NETD	＜30mK
Frame Rate	25Hz/30Hz
Start-up Time	15s
Analog Video	PAL/NTSC
Digital Video	RAW/YUV/BT656/LVDS
Standard External Interface	50pin_HRS
Supply Voltage	4~6V
Typical Power Consumption	1.5W
Temperature Measurement Range	-20℃~150℃, 0℃~550℃
Temperature Accuracy	Greater of ±2℃ or ±2%
Operating Temperature	-40°C~+70°C
Storage Temperature	-45°C~+85°C
Size (mm)	44.5×45.95×36.6
Weight	90g±3g
Optional Lens	Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm

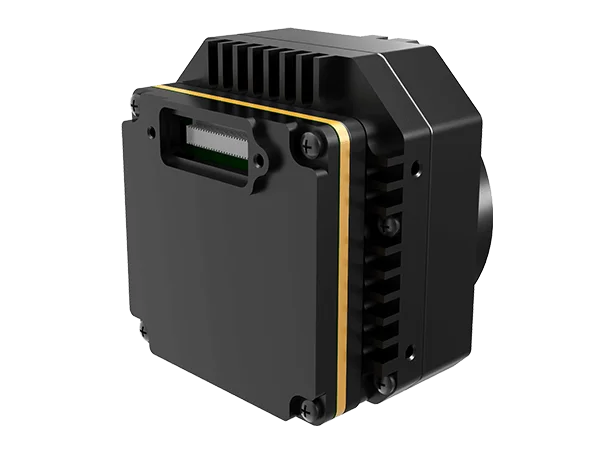

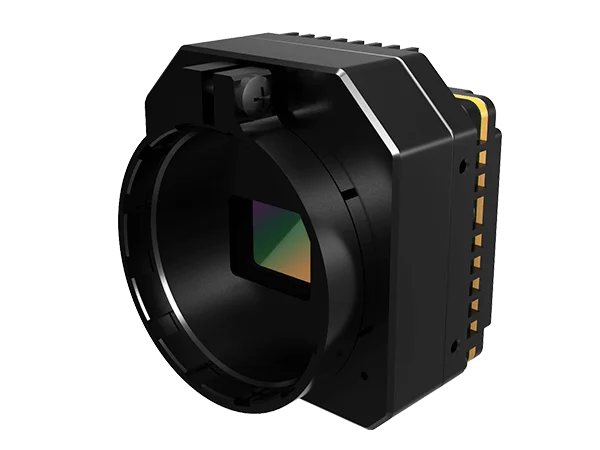

PLUG417R
