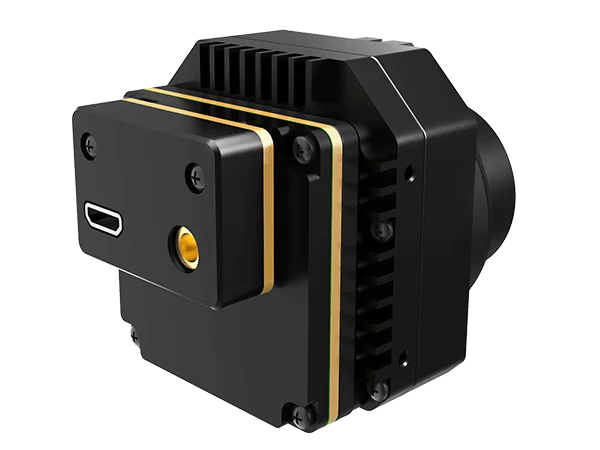

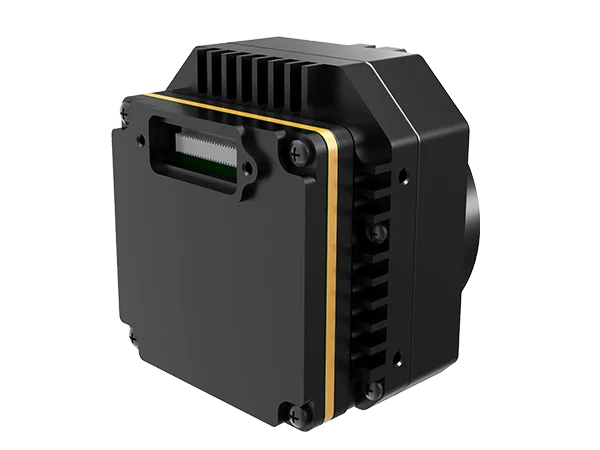

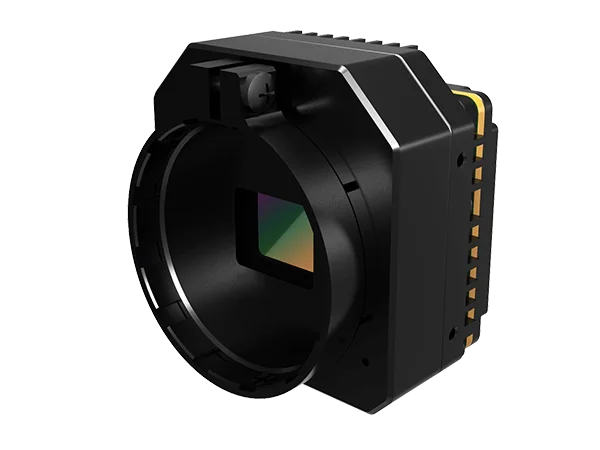

PLUG617R
PG Series 640×512/17μm Uncooled Thermal Module
1 / 4
Product Description
PG617/PG617R is one of the PG series uncooled thermal camera module developed by ChengJing. It consists of 640x512/17μm uncooled FPA infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.
PG617/PG617R infrared thermal sensor module is a kind of uncooled camera module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.
As a leading thermal camera module manufacturer, ChengJing is committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.
Main Features
High Sensitivity
Typical NETD<30mk, High Sensitivity
Stable Performance
Stable Performance for reliable operation
Easy Integration
Easy Integration & Plug-in design
Clear Image Quality
Clear Image Quality & Details
Customizable Range
Customizable Temperature Range
Environmental Adaptability
Strong Environmental Adaptability
Specifications
| Parameter | Value |
|---|---|
| Model | PG617/PG617R |
| Resolution | 640×512 |
| Pixel Size | 17μm |
| Spectral Range | 8~14μm |
| Typical NETD | ＜30mK |
| Frame Rate | 25Hz/30Hz |
| Start-up Time | 15s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656/LVDS |
| Expansion Components | USB/VPC/Cameralink/Gig-E |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Algorithm | NUC/AGC/IDE |
| Standard External Interface | 50pin_HRS |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4~6V |
| Typical Power Consumption | 1.5W |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
| Temperature Accuracy | Greater of ±2℃ or ±2% |
| SDK | Support ARM/Windows/Linux SDK |
| Operating Temperature | -40°C~+70°C |
| Storage Temperature | -45°C~+85°C |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Size (mm) | 44.5×45.95×36.6 |
| Weight | 90g±3g |
| Optional Lens | Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm |
