TWIN1212
Uncooled HD 1280×1024/12µm Infrared Camera Core
1 / 5
Product Description
CR1212 uncooled infrared camera core integrates ChengJing self-developed ceramic package infrared detector, high performance signal processing circuit and brand new image algorithm to output ultra clear images and accurate temperature data. It is suitable for application scenarios with requirements of high quality image and high performance.
The CR1212 thermal module features compact design, light weight and low power consumption. With brand new image algorithm for excellent image presentation and accurate temperature measurement, the CR1212 is ideal for security monitoring, firefighting, outdoor, UAV payloads and scientific research.
Main Features
Optimized Solution
Mini size: 33mm×33.4mm×17.6mm (bare module)
Light Weight
Weight as light as 20g (bare module)
Low Power
Power consumption as low as 1W
Outstanding Image Quality
Brand new image algorithm for excellent image presentation: NUC/3DNR/DNS/DRC/EE
Accurate Temperature Measurement
Temperature measurement range: -20℃~150℃, 0~550℃ (customizable)
High Accuracy
Temperature measurement accuracy: ±2℃ or ±2%
SDK Support
Support Android/Windows/Linux/ARM SDK; achieve video stream analysis and conversion from gray to temperature
Strong Universality
Good stability in various harsh environments
Specifications
| Parameter | Value |
|---|---|
| Model | CR1212/R |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Range | 8~14μm |
| Typical NETD | ＜30mK |
| Frame Rate | 25Hz/30Hz/50Hz |
| Start-up Time | 5s |
| Digital Video | YUV/BT.1120 |
| Image Display | 11 Types (White Hot/Lava/Iron Red/etc.) |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Standard External Interface | 50pin_HRS |
| Communication Interface | RS232/USB2.0 |
| Supply Voltage | 5V±0.5V |
| Typical Power Consumption | 1W |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
| Temperature Accuracy | Greater of ±2℃ or ±2% |
| SDK | Android/Windows/Linux/ARM |
| Operating Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Vibration | 5.35grms, 3-axis |
| Shock | Half Sine Wave, 40g/11ms |
| Size (mm) | 33×33.4×17.6 (Bare Module) |
| Weight | 20g (Bare Module) |

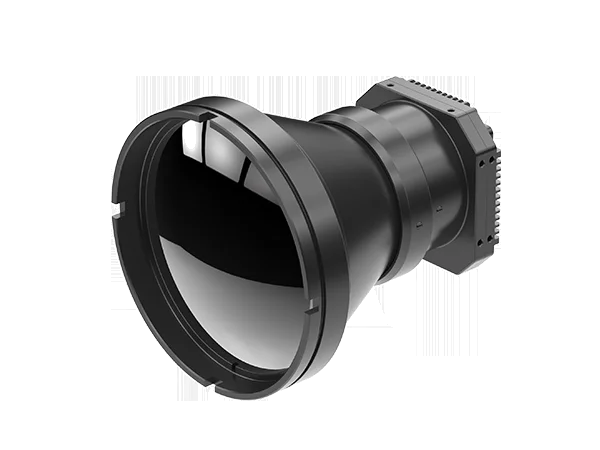

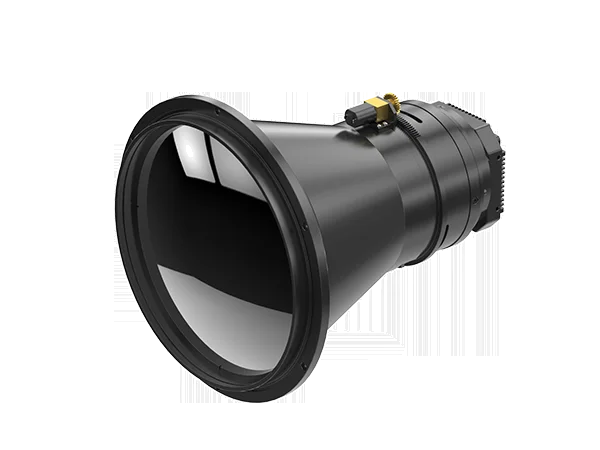

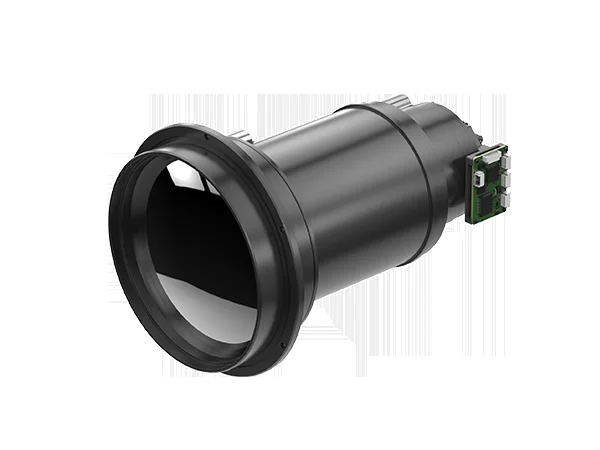

| Optional Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm / Motorized Lens: 75mm/100mm/150mm / Continuous Zoom: 28~90mm/30~180mm |
