Product Description

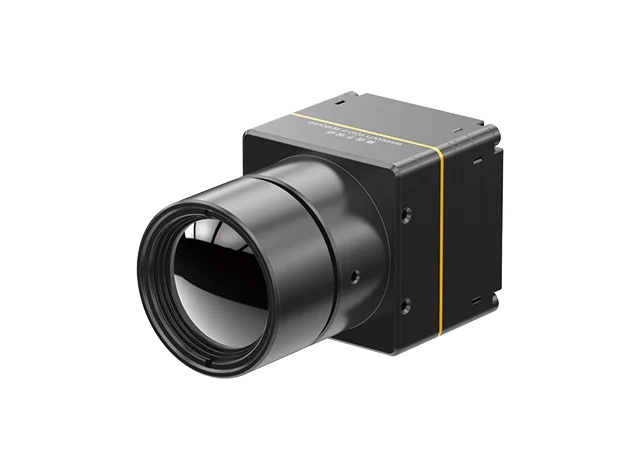

CR412/R thermal module is a new arrival infrared product developed by ChengJing. It uses 384×288/12μm ceramic package infrared detector. The thermal module supports 11 pseudo color in total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot). Different industries have different color palette choices.

Ceramic packaging is currently the most popular packaging technology on the market. The size, weight and power consumption of the detector can be significantly reduced.

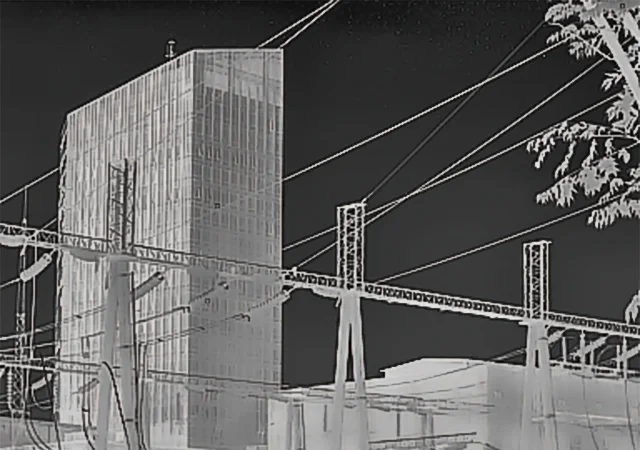

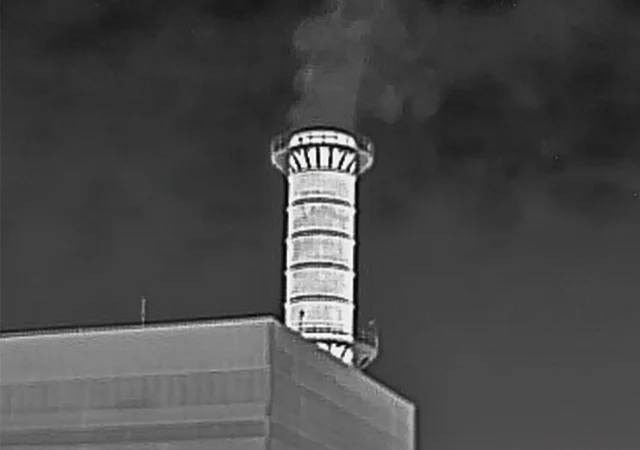

By integrating the ceramic packaging infrared detector, the CR412/R thermal module presents clear and sharp images.

This new CR412 thermal module will give more choices for customers from various industries such as Industrial Automation, Intelligent Security, Unmanned Platform, Robot, Intelligent Hardware, Advanced Driver Assistant System, Firefighting etc.

Main Features

Optimized Solution

Mini size: 25.4mm×25.4mm×22.0mm (without lens)

Light Weight

Light weight: as low as 20g (without lens)

Low Power

Power consumption as low as 0.8W

Outstanding Performance

Powerful image process algorithm: NUC/3DNR/DNS/DRC/EE

Temperature Measurement

Temperature measurement range: -20℃~150℃, 0~550℃ (customizable)

Good Stability

Good stability in various harsh environments

SDK Support

Support Windows/Linux SDK; achieve video stream analysis and conversion from gray to temperature

Specifications

Parameter	Value
Model	CR412/R
Resolution	384×288
Pixel Size	12μm
Spectral Range	8~14μm
Typical NETD	＜30mK
Frame Rate	25Hz/30Hz/50Hz
Start-up Time	5s
Digital Video	YUV/BT.656
Image Display	11 Types (White Hot/Lava/Iron Red/etc.)
Image Algorithm	NUC/3DNR/DNS/DRC/EE
Standard External Interface	50pin_HRS
Supply Voltage	5V±0.5V
Typical Power Consumption	0.8W
Temperature Measurement Range	-20℃~150℃, 0℃~550℃
Temperature Accuracy	Greater of ±2℃ or ±2%
Operating Temperature	-40℃～+70℃
Storage Temperature	-45℃～+85℃
Size (mm)	25.4×25.4×22.0 (without lens)
Weight	20g (without lens)
