TWIN612

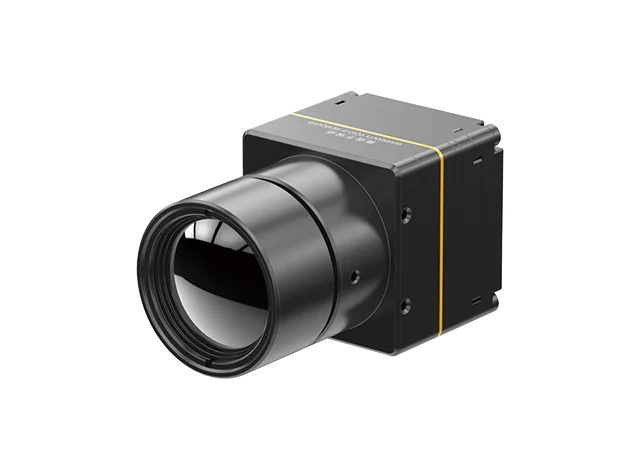

CR612 thermal module is a new arrival product developed by ChengJing. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD＜30mk, the CR612 thermal module could present clearer, sharper and more detailed image.

With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.

The CR612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the CR612 thermal module presents more stable images and accurate temperature.

Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the CR612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.
