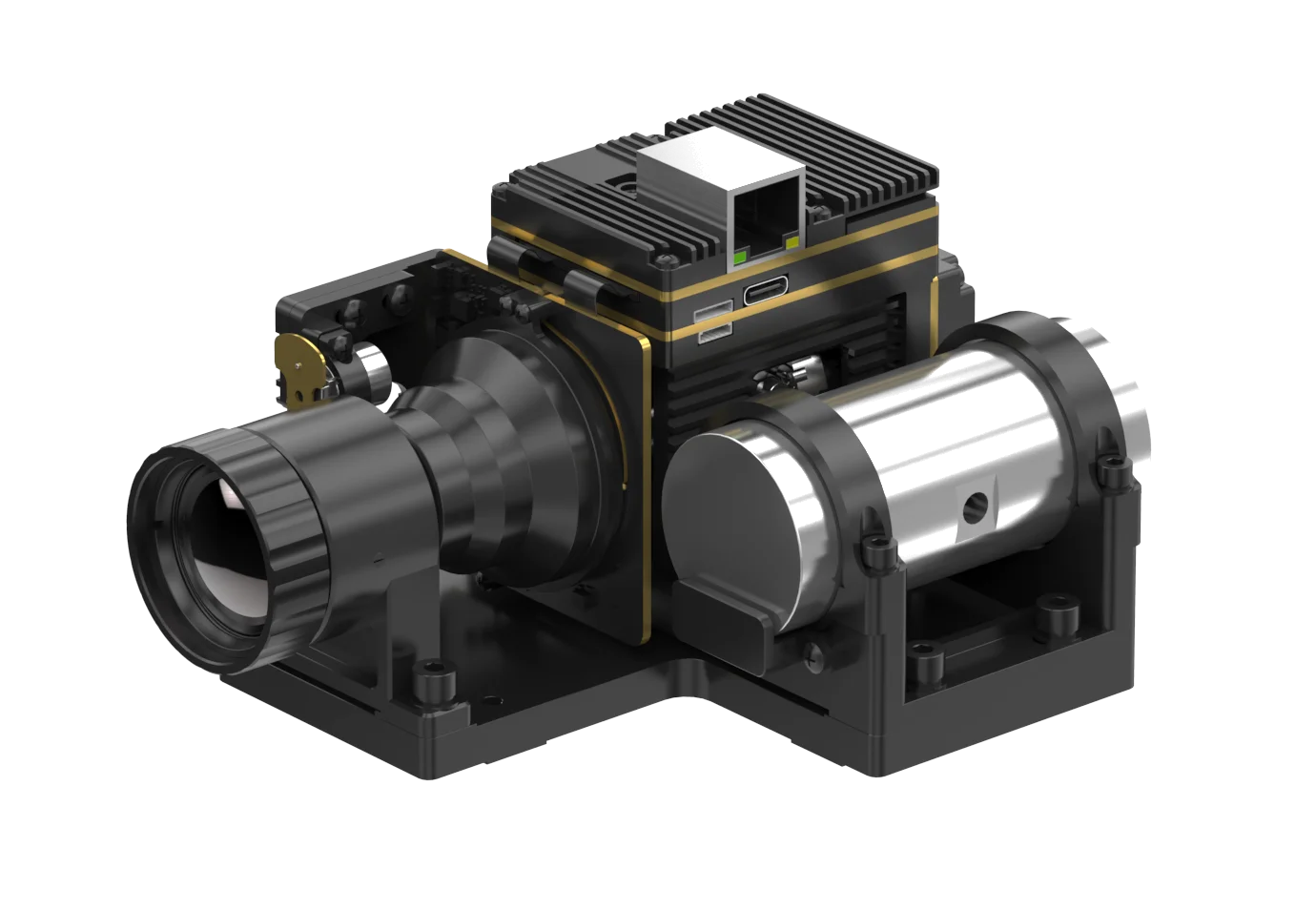

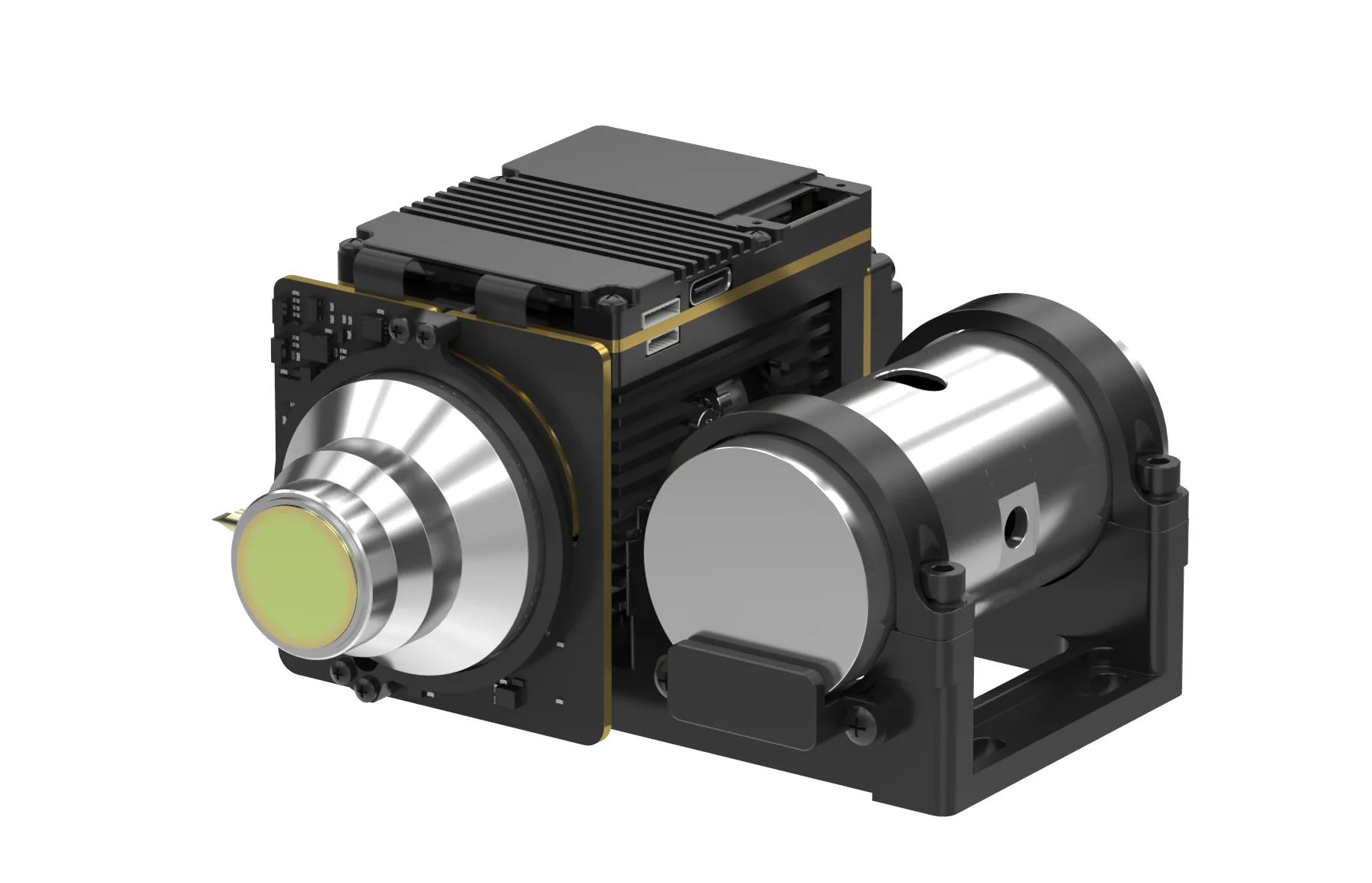

XH1210HMF
HOT Cooled MWIR 1280×1024/10μm Infrared Module
1 / 3
Product Description
The XH1210HMF module uses a high-temperature, cooled 1280×1024/10μm mid-wavelength infrared detector combined with a next-generation image processing algorithm to output fine, high-definition 1280×1024 infrared images.
The image size is reduced to 10μm, achieving higher spatial resolution, and shorter focal length optical lenses can achieve the same detection distance. HOT technology has significantly optimized the module's size, weight, and power consumption.
Main Features
Large-area Array
1280×1024 large-area array, wide field of view
High Spatial Resolution
10μm pixel size, high spatial resolution, long-range detection
Compact Size
Size reduced to 101×101×54mm³, weight reduced to 570g
Quick Start-up
Cooling time reduced to 6min, quick start-up
Multiple Interfaces
Cameralink/USB3.0/GiGE/HDMI/SDI/MIPI/Fiber optic
Specifications
| Parameter | Value |
|---|---|
| Model | XH1210HMF |
| Detector Type | HOT Cooled MWIR |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Range | 3~5μm (MWIR) |
| Size (mm) | 101×101×54 |
| Weight | 570g |
| Cooling Time | 6min |
| Interface | Cameralink/USB3.0/GiGE/HDMI/SDI/MIPI/Fiber |
