XH1210LC
Cooled LWIR 1280×1024/10μm Infrared Module
1 / 4
Product Description

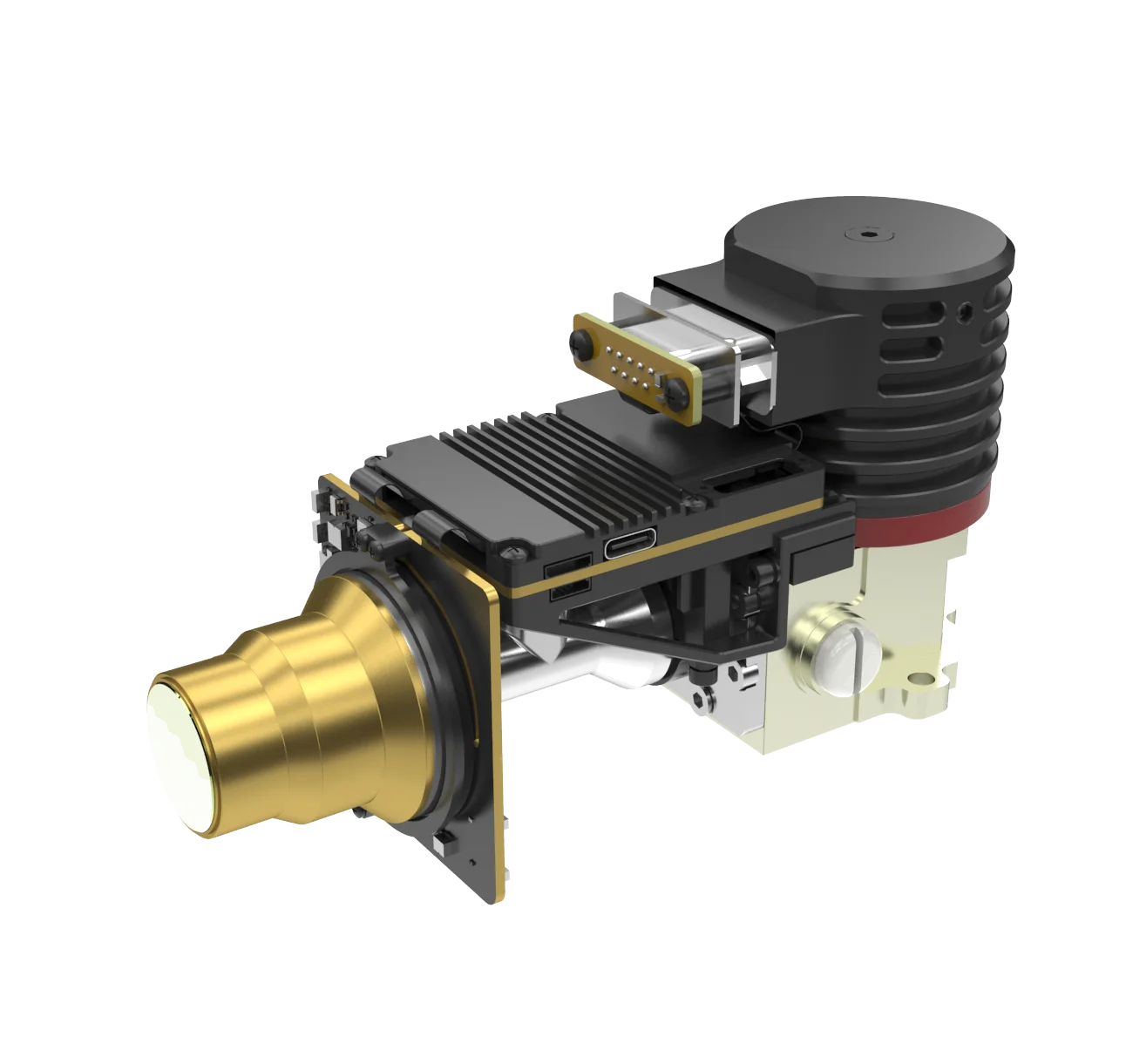

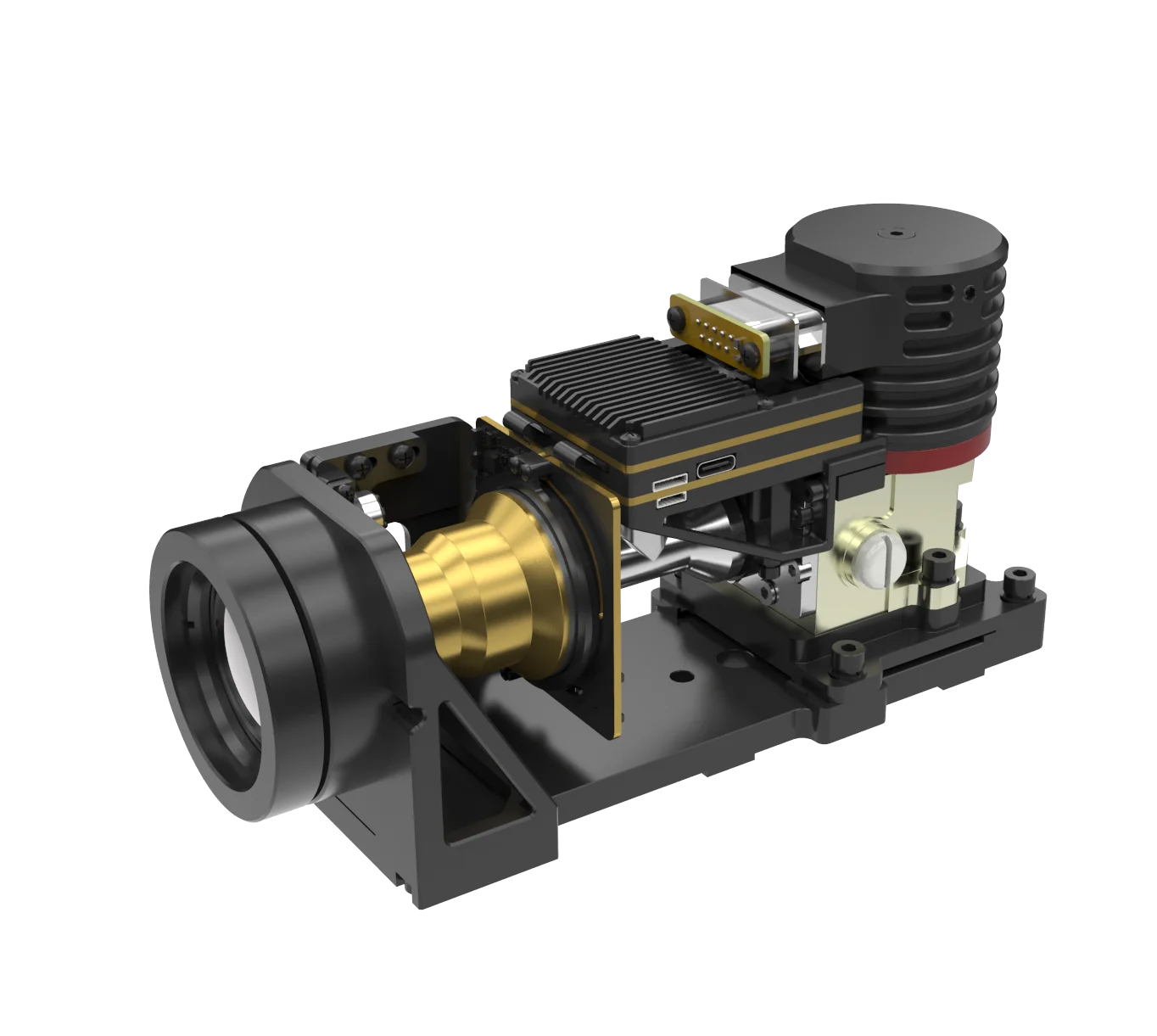

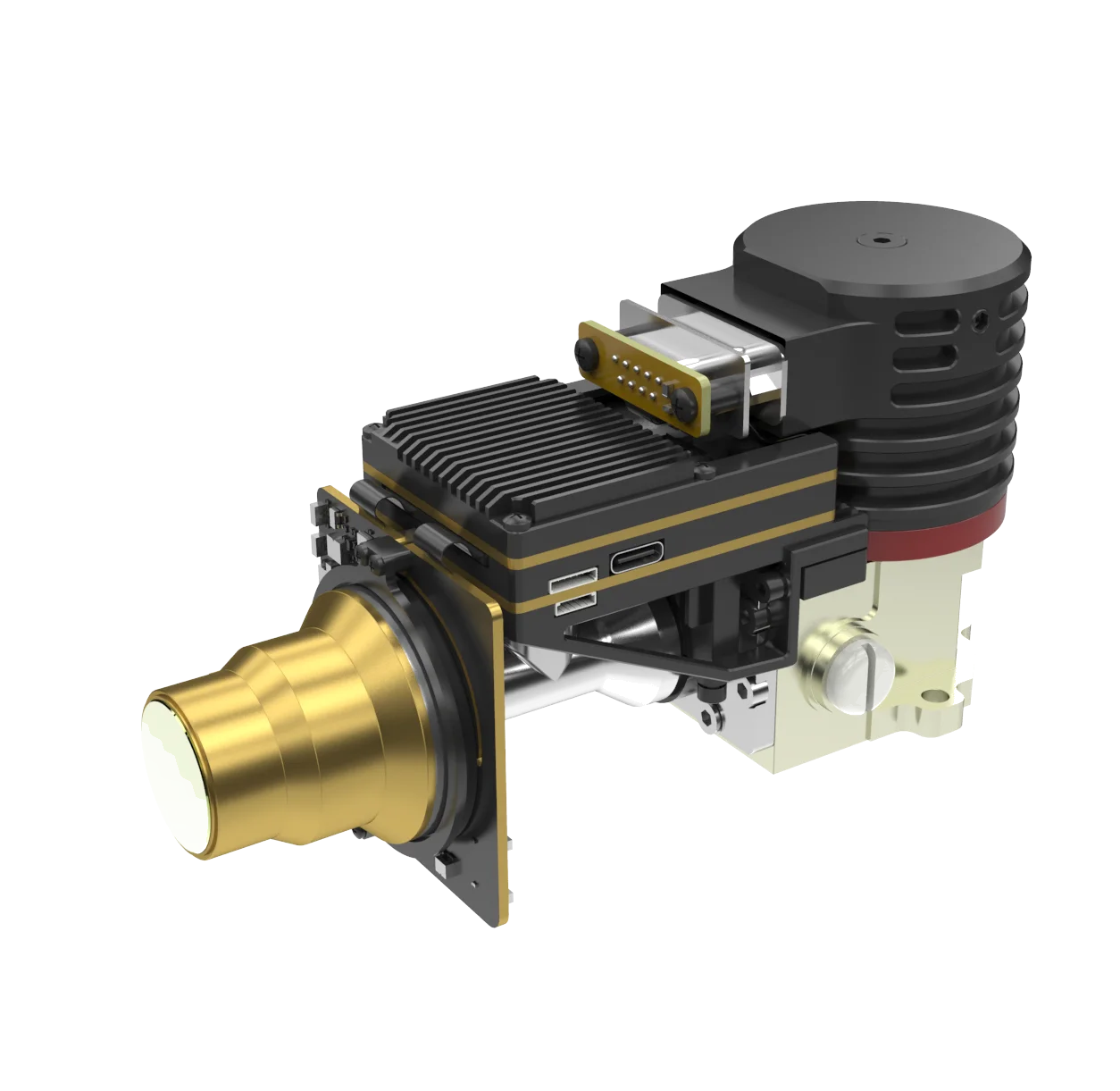

The XH1210LC long-wavelength cooled infrared module, based on a 1280×1024/10μm long-wavelength cooled infrared detector, is integrated with various image processing algorithms.
It is particularly suitable for detecting dust or reflective interference in challenging environments. The high frame rate allows for the acquisition of fast-moving targets. The mechanism is compatible with multiple interfaces for easy integration.
Main Features
Dust Penetration
High ability to penetrate sand and dust, adapt to complex working environments
Low-temperature Detection
Capable of detecting low-temperature objects
Anti-reflection
Undisturbed by the reflection of the sun and sea
Multiple Interfaces
Cameralink/USB3.0/GiGE/HDMI/SDI/MIPI/Fiber optic
Specifications
| Parameter | Value |
|---|---|
| Model | XH1210LC |
| Detector Type | Cooled LWIR |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Range | 8~12μm (LWIR) |
| Interface | Cameralink/USB3.0/GiGE/HDMI/SDI/MIPI/Fiber |
Interested in XH1210LC?
Contact our sales team for pricing, samples, and technical support.
