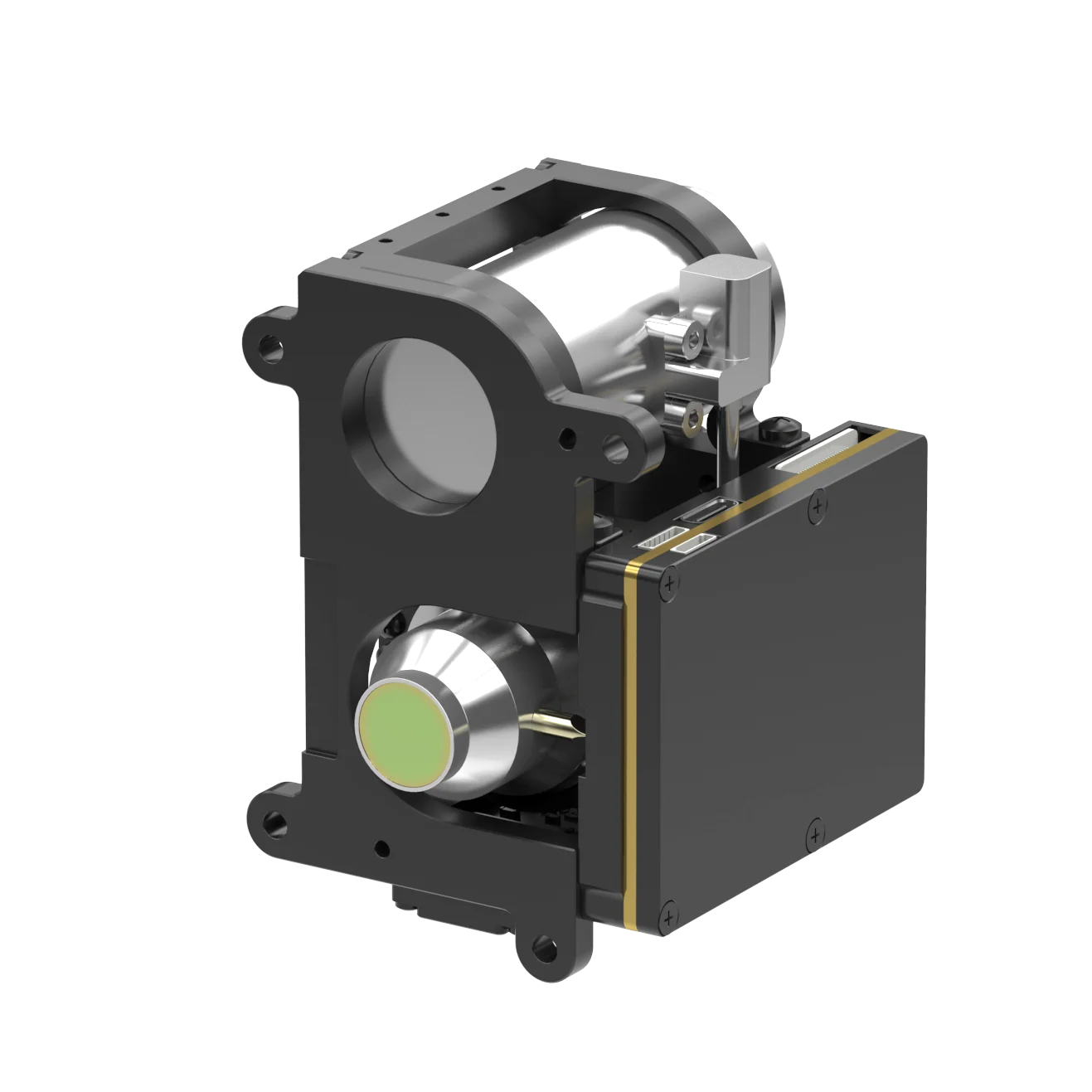

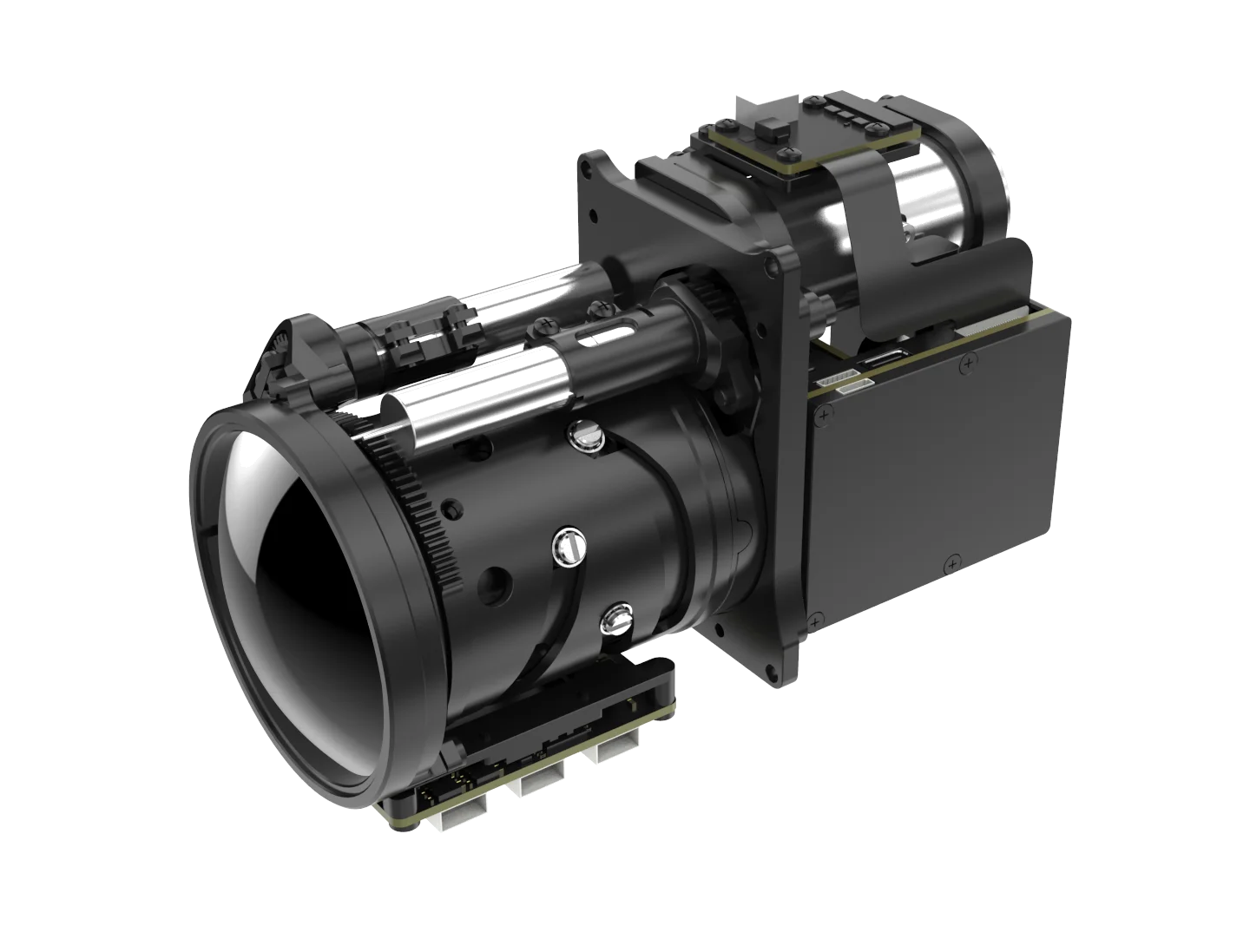

XH615HMG
HOT Cooled MWIR 640×512/15μm Infrared Module
1 / 4
Product Description
The XH615HMG module utilizes a 640×512/15μm high-temperature, cooled mid-wave infrared detector combined with a next-generation image processing algorithm to produce fine, high-definition 640×512 infrared images.
The image size is reduced to 15μm, providing higher spatial resolution, and shorter focal length optical lenses can achieve the same detection distance. HOT technology significantly optimizes the module's performance.
Main Features
Large-area Array
640×512 large-area array, wide field of view
High Spatial Resolution
15μm pixel size, high spatial resolution, long-range detection
Multiple Interfaces
Cameralink/USB3.0/GiGE/HDMI/SDI/MIPI/Fiber optic
Specifications
| Parameter | Value |
|---|---|
| Model | XH615HMG |
| Detector Type | HOT Cooled MWIR |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Range | 3~5μm (MWIR) |
| Interface | Cameralink/USB3.0/GiGE/HDMI/SDI/MIPI/Fiber |
