XH615LA
Cooled LWIR 640×512/15μm Infrared Module
1 / 4
Product Description

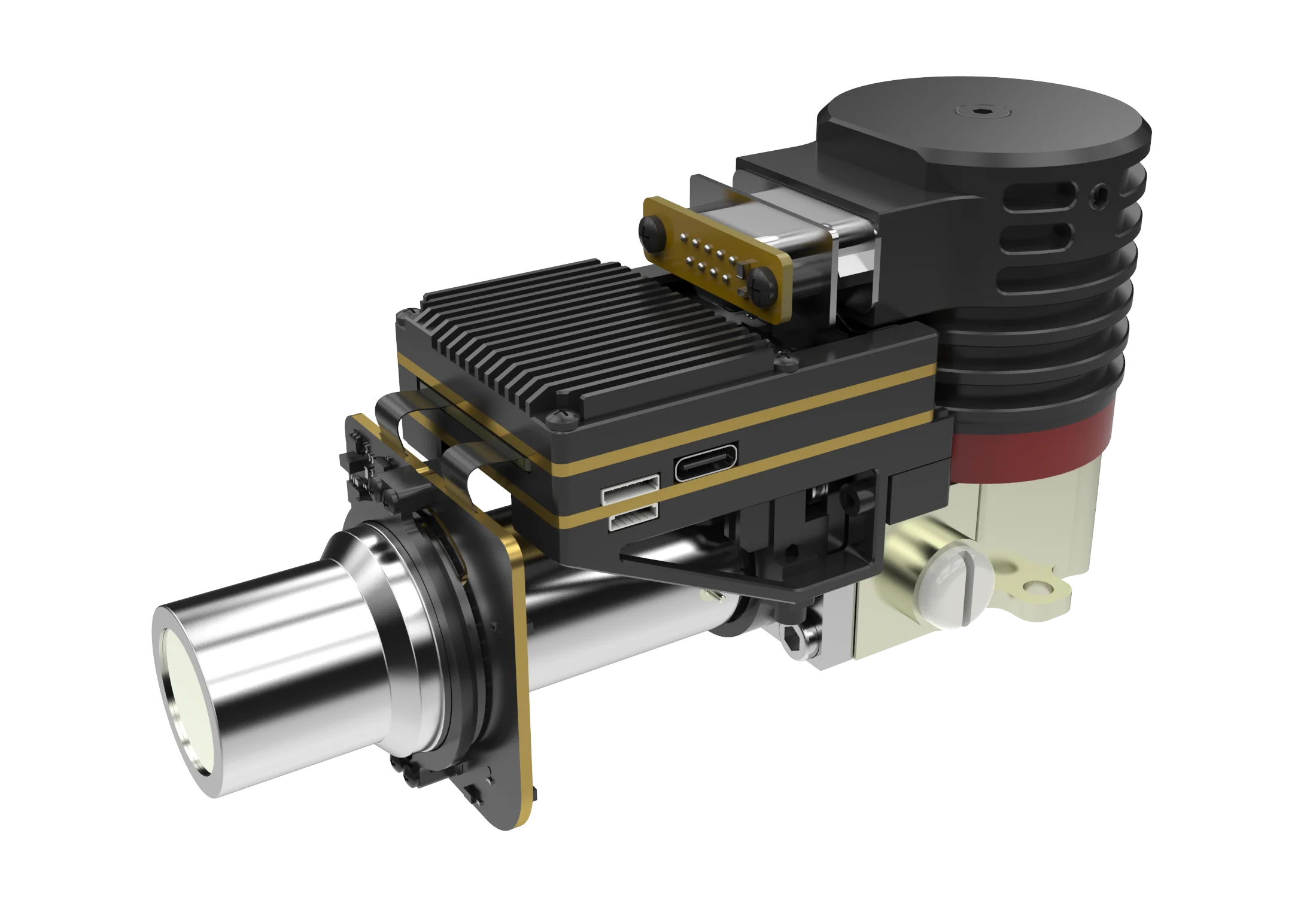

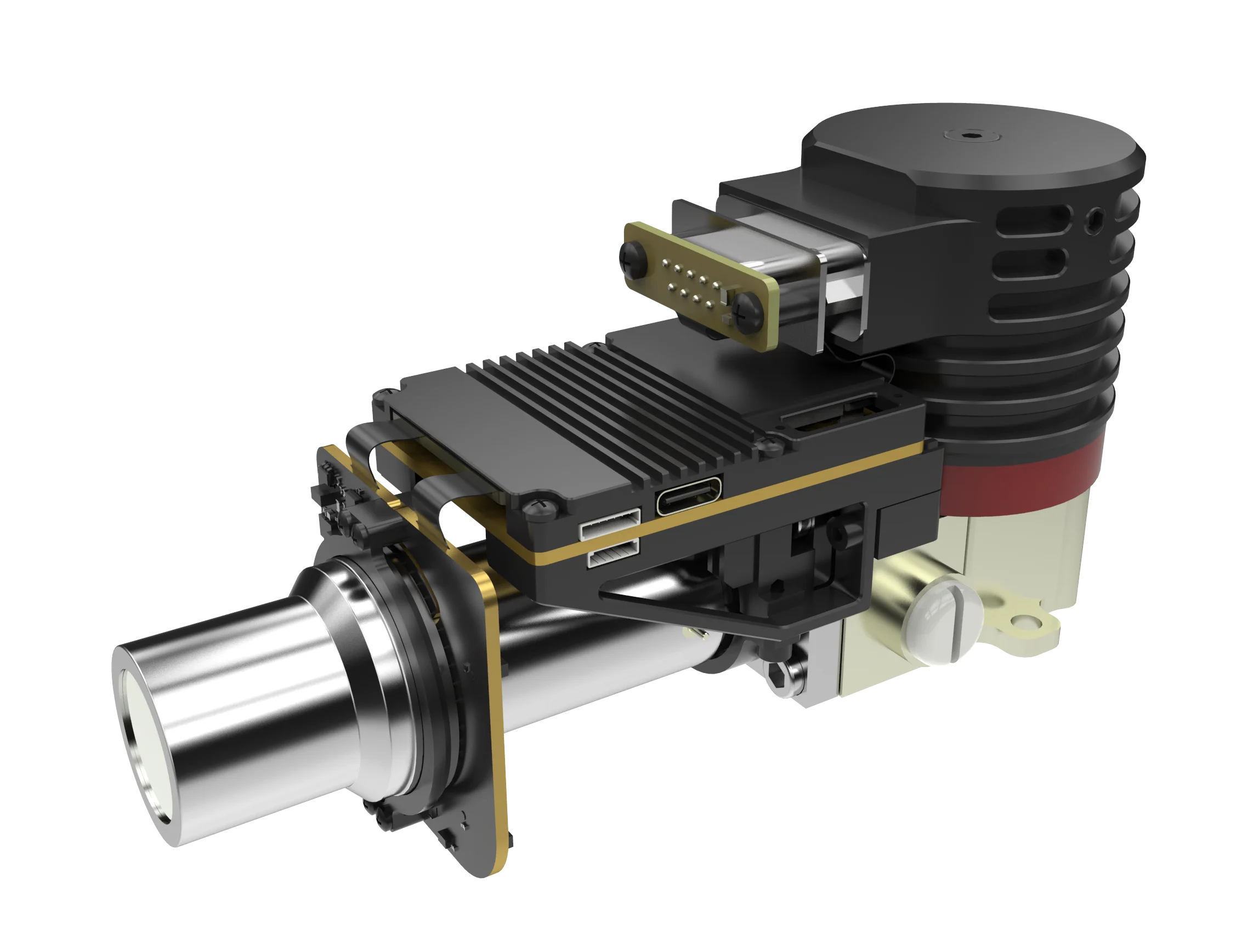

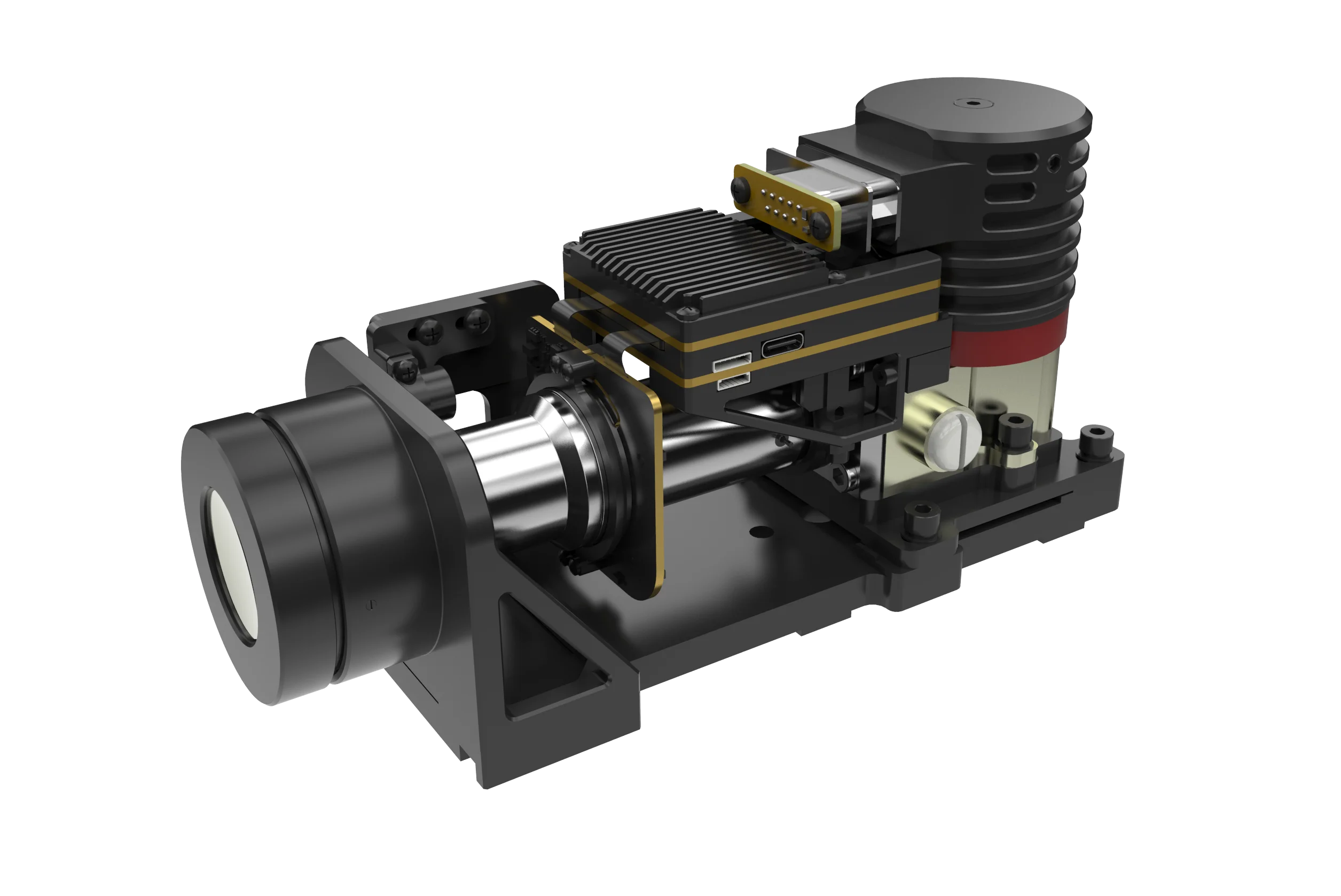

The XH615LA long-wavelength cooled infrared module, based on a 640×512/15µm long-wavelength cooled infrared detector, is integrated with various image processing algorithms.
It is particularly suitable for detecting dust or reflective interference in challenging environments. A frame rate of up to 100Hz enables the acquisition of fast-moving targets.
Main Features
Dust Penetration
High ability to penetrate sand and dust, adapt to complex working environments
Low-temperature Detection
Capable of detecting low-temperature objects
Anti-reflection
Undisturbed by the reflection of the sun and sea
High Frame Rate
Output frame rate of 50Hz/100Hz
Multiple Interfaces
Cameralink/USB3.0/GiGE/HDMI/SDI/MIPI/Fiber optic
Specifications
| Parameter | Value |
|---|---|
| Model | XH615LA |
| Detector Type | Cooled LWIR |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Range | 8~12μm (LWIR) |
| Frame Rate | 50Hz/100Hz |
| Interface | Cameralink/USB3.0/GiGE/HDMI/SDI/MIPI/Fiber |
