XH615MA
Cooled MWIR 640×512/15μm Infrared Module
1 / 4
Product Description

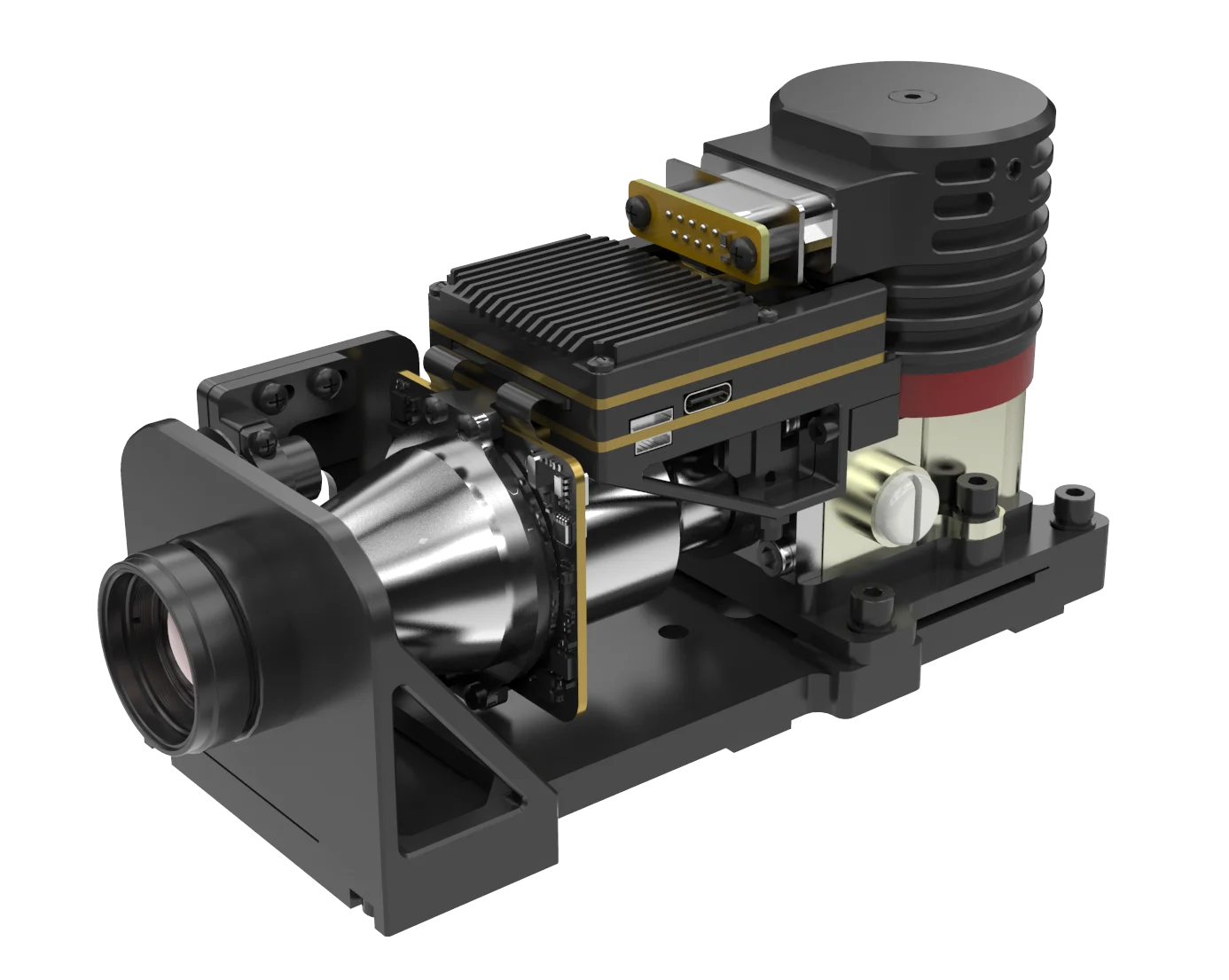

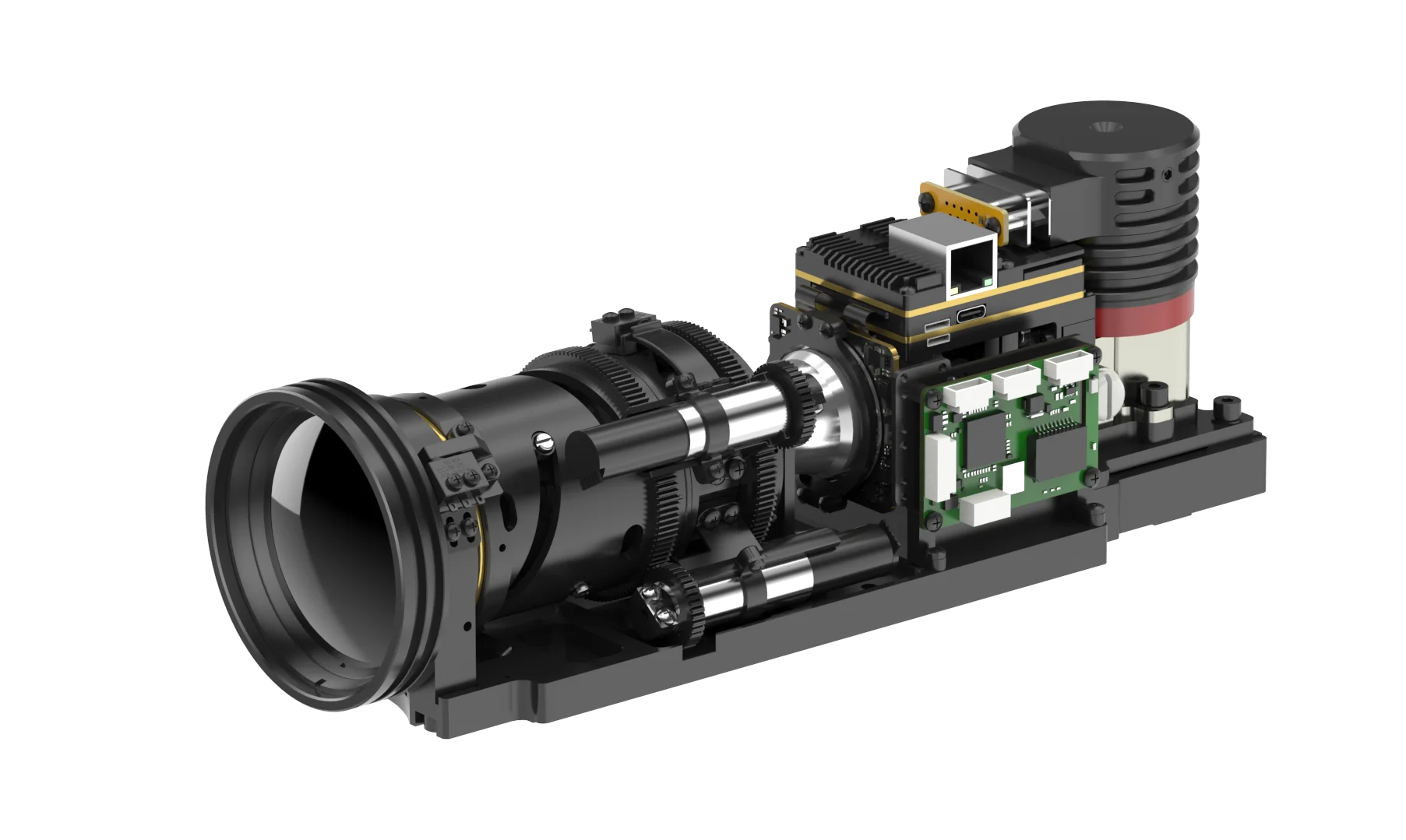

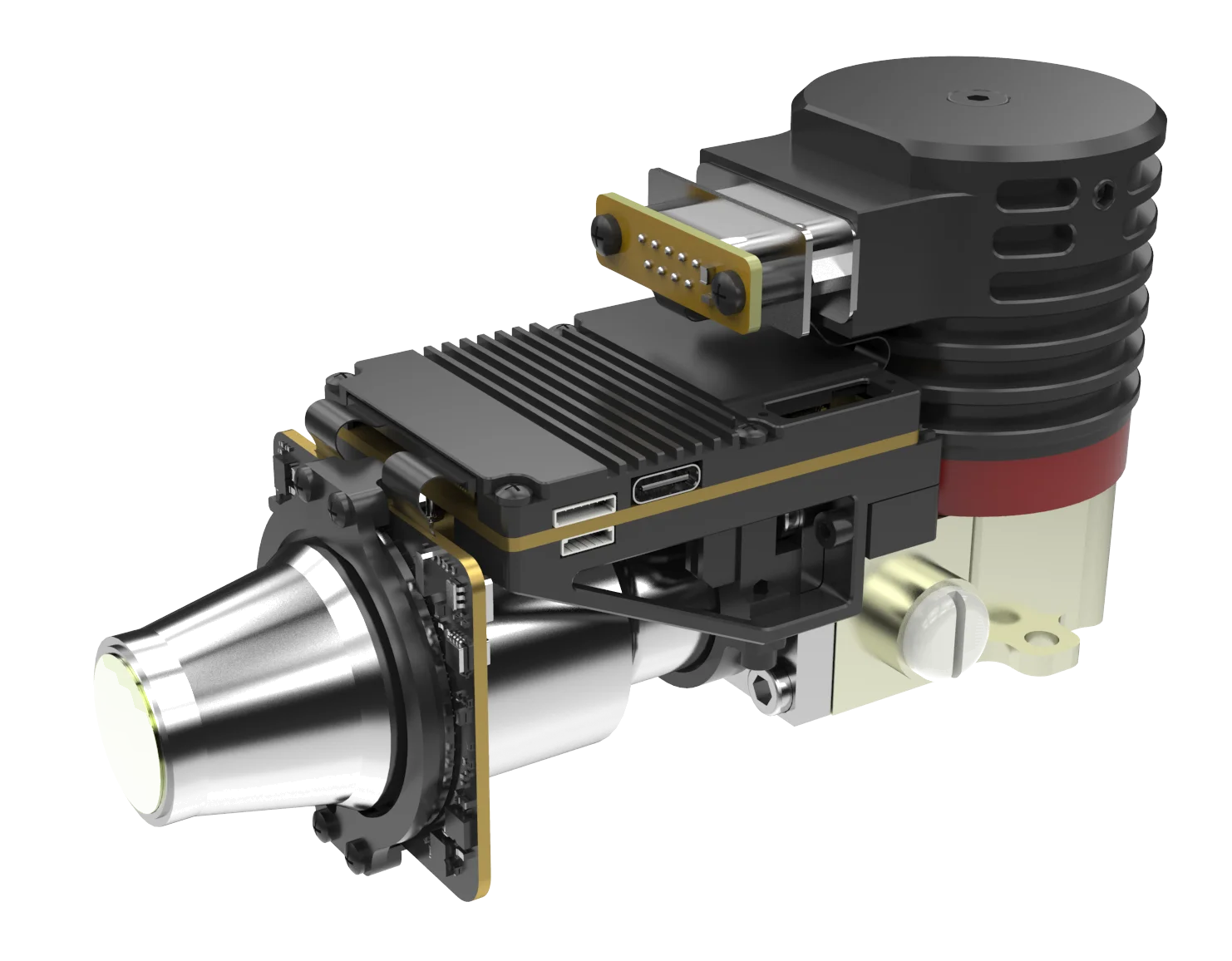

The XH615MA is a standard cooled infrared module developed by ChengJing. It is available in various resolution formats, wavelength ranges, and continuous optical lens options. The XH615MA features a 640×512/15µm MWIR module with a CL058 cryocooler built in.
The XH615MA's electronics are pre-integrated with various image processing algorithms to produce clear infrared images in complete darkness or poor visibility conditions.
Main Features
Long-range Detection
Meets long-range detection requirements
High Sensitivity
High sensitivity cooled detector
Easy Integration
Easy system integration
Multiple Interfaces
DVP/Cameralink interface, RAW/YUV image output
Specifications
| Parameter | Value |
|---|---|
| Model | XH615MA |
| Detector Type | Cooled MWIR |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Range | 3~5μm (MWIR) |
| Cryocooler | CL058 |
| Interface | DVP/Cameralink |
| Video Output | RAW/YUV |
