YXI80
Entry-level Handheld Thermal Imager 80×62 CMOS
1 / 6
Product Description
The YXI80 is an entry-level handheld thermal imager featuring 80×62 resolution CMOS detector with a wide temperature measurement range of -20°C to 550°C. With 150mK thermal sensitivity and 45°(H)×36°(V) field of view, it delivers reliable thermal imaging for various applications.
Key features include multiple image modes (IR, Visible, Fusion, PIP), TISR mode for enhanced image clarity, multiple color palettes, and built-in flashlight function. The 30W visible light camera helps accurately identify targets in the field.
The compact 225mm×70mm×86.5mm design weighs only 303g with a 2000mAh rechargeable battery providing ≥7 hours of continuous operation. Supports expandable SD card storage, multiple languages, and includes PC Analysis Tool. Certified with CE, FCC, and ROHS standards.

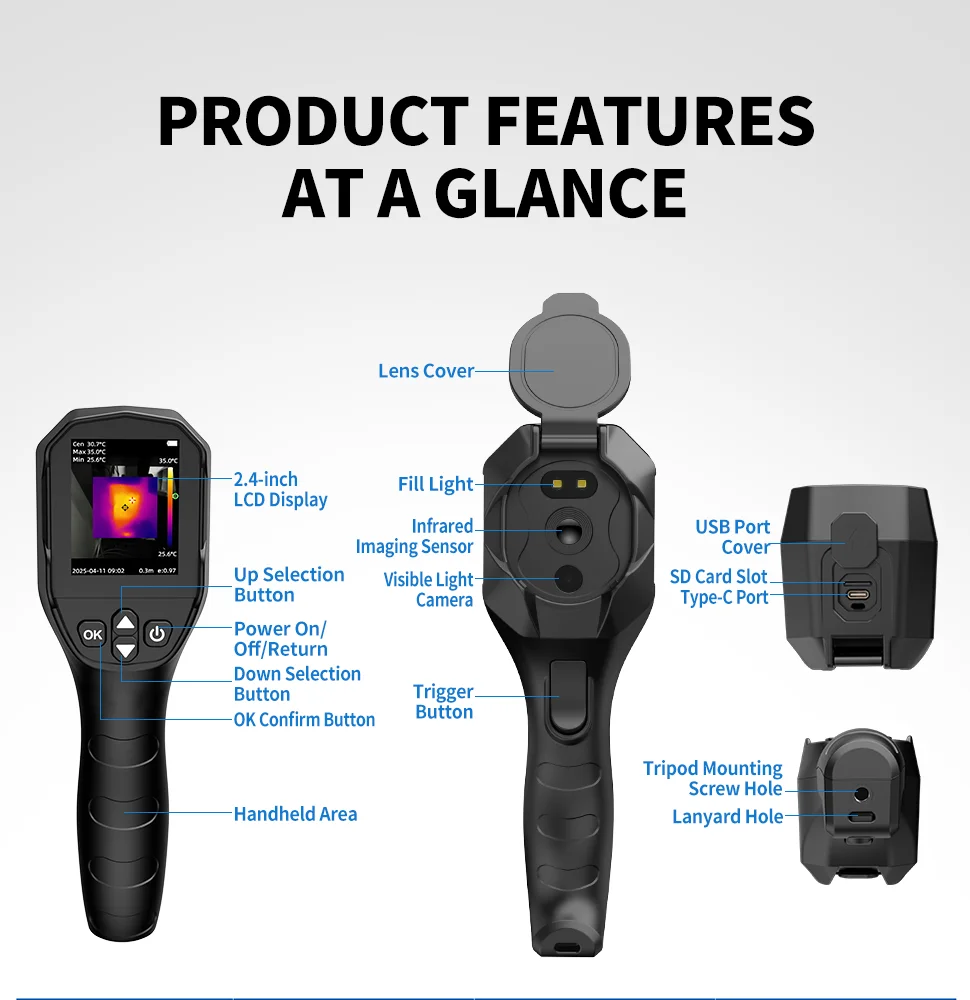

Main Features

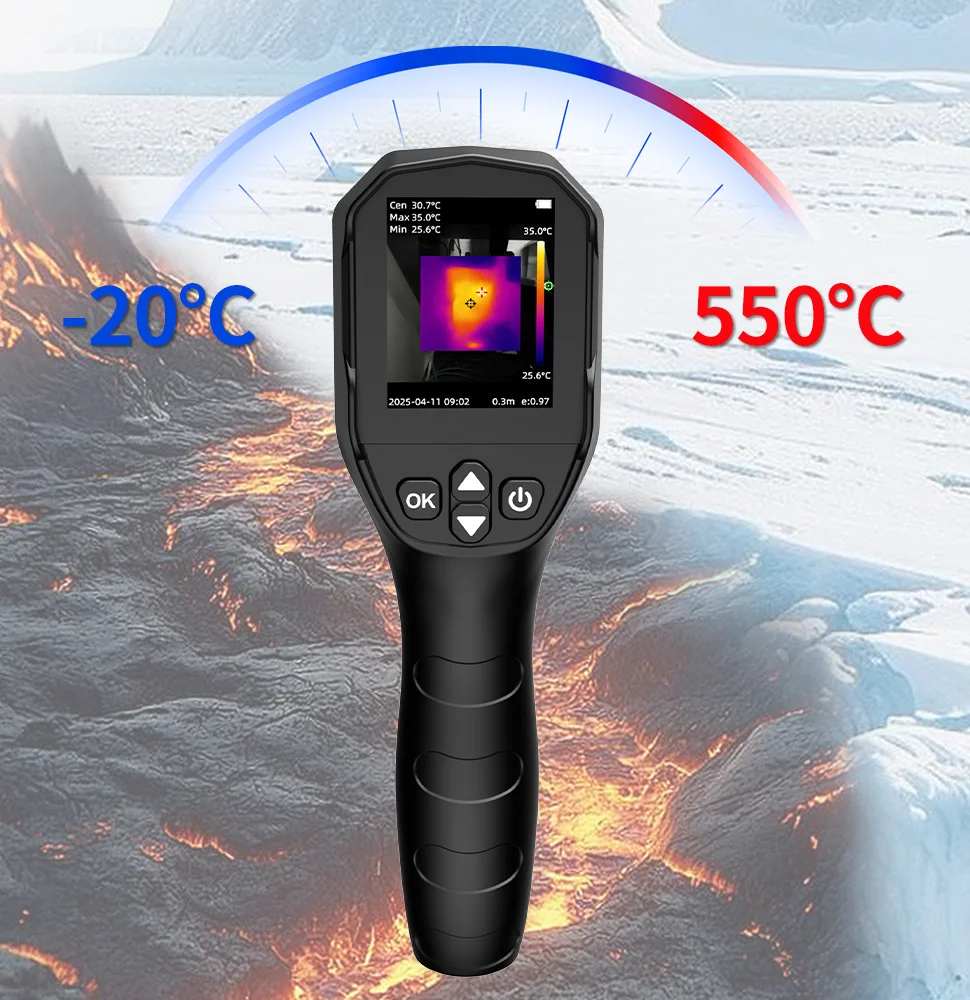

Temperature Range
-20~550°C Wide Range
Resolution
80×62/96×96 Options Available
Visible Light
More Accurately Identify Targets
TISR Mode
Enhance Image Clarity and Integrity
Multiple Palettes
Choose and Switch Different Palettes as Needed
Flashlight Function
Fearless in Dark Environments
SD Card Data Storage
External SD Card, Expandable
Multiple Languages
Meets the Needs of Users from Different Countries and Regions
Rechargeable Battery
Meets Users' Needs for Long-Term Measurement
Specifications
| Parameter | Value |
|---|---|
| Model | YXI80 |
| Temperature Range | -20°C~550°C |
| Infrared Resolution | 80×62 |
| Measurement Accuracy | ±2°C or ±2% of reading (whichever is greater) |
| Measurement Sensitivity | 0.1°C |
| Detector Type | CMOS |
| Measurement Mode | Industrial Temperature Measurement |
| Emissivity | 0.01~1.00 |
| Infrared Wavelength Range | 8~14μm |
| Pixel Size | 35μm |
| Spatial Resolution | 11.67mrad |
| Focal Length | 3.0mm |
| Frame Rate | 25Hz |
| Thermal Sensitivity (NETD) | 150mK(@25°C,F#1.0) |
| Focusing Method | Fixed Focus |
| Field of View (FOV) | 45°(H)×36°(V)/55°(D) |
| Temperature Units | °C/°F/K |
| Temperature Display | Center Point, Max Temp, Min Temp |
| Temperature Analysis | PC Analysis Tool |
| High/Low Temperature Alarm | On-screen marker alarm |
| Color Palettes | White Hot, Black Hot, Rainbow, Iron Red, Black Red, etc. |
| Visible Light Camera | 30W |
| Image Modes | IR, Visible, Fusion, PIP |
| Image/Video Capture | Image |
| Image Format | JPEG |
| Flashlight | √ |
| Data Interface | Type-C |
| Languages | Simplified Chinese, English |
| Storage | 4G SD Card (Expandable) |
| Battery | Non-removable 2000mAh |
| Charging Time | ≤3h |
| Operating Time | ≥7h |
| Operating Temperature | -10~50°C |
| Operating Humidity | 10%~90%RH (non-condensing) |
| Storage Temperature | -20~60°C |
| Power Consumption | ≤1W |
| Certifications | CE, FCC, ROHS |
| Display | 2.4-inch |
| Product Dimensions | 225mm×70mm×86.5mm |
| Product Weight | 303g |
| Standard Accessories | Color box, user manual, Type-C data cable (1m) |
